GEN-II™ Systems

GEN-II Technology Benefits:
- High torque screw-drive servo motors control all butterfly airflow doors.
     Increased travel on these doors allows much greater airflow.
     Immediate response to control input and superior door sealing .
     No reliance on engine vacuum (important with high performance engines!).
- Re-engineered heating/cooling coil.
     Increases cooling capacity by over 20%, and heating capacity by over 100%!
- Re-engineered and computer aided design of evaporator case.
     Optimized internal case design allows significant airflow volume increases.
     Increased capacity and control of dehumidified defroster airflow.
     Defrost mode features our exclusive dedicated airflow.
     Blower fan motor isolated on rubber mounts for quiet running and longer life.

GEN-II™ SYSTEMS
Come complete with:

Evaporator and Mounting Brackets
Wiring Harness
Adjustable Servo Heater Control Valve
A/C Duct Hose
Drain Kit
Defrost Option Includes Hoses and Ducts

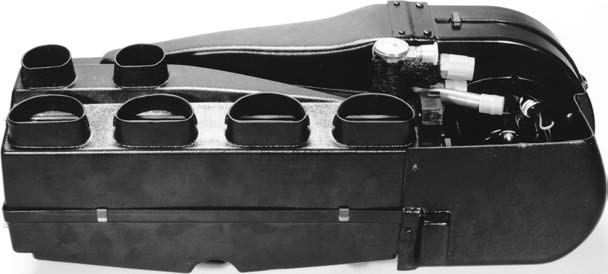

61005 Series - GEN-II Super Cooler - Specify Heat & Cool or Heat, Cool & Defrost model.
THE ABSOLUTE PERFORMANCE LEADER! State of the art GEN-II servo motor control technology is the foundation of our most popular heat & cool system ever. Amazing performance is achieved with the GEN-II Super’s new “D” shaped air outlets. As an added benefit, you can position all 4 louvers wherever you need them. The ideal system for the largest sedans and wagons. Features true bi-level operation in cool and heat modes and a more powerful dedicated dehumidified defroster mode.
24" wide x 8.5" high x 8.5" deep

68000 Series - GEN-II Compac - Specify Heat & Cool or Heat, Cool & Defrost model.
AMAZING PERFORMANCE IN A COMPACT SYSTEM! State of the art GEN-II servo motor control technology makes this mid sized package work better than most other’s full-size systems. Amazing performance with three vents allowing you to position louvers wherever you need them. The ideal system for the coupes and smaller sedans and wagons. Features true bi-level operation in cool and heat modes and a more powerful dedicated dehumidified defroster mode.
20.5" wide x 9" high x 7.75" deep

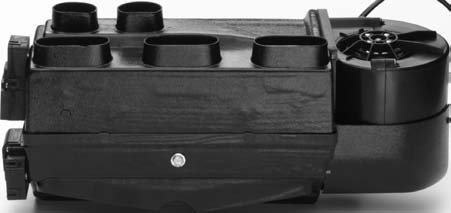

66005 Series - GEN-II Mini - Specify Heat & Cool or Heat, Cool & Defrost model.
GEN-II TECHNOLOGY FOR THE SMALLEST CARS AND TRUCKS! State of the
art GEN-II servo motor control technology is now incorporated into our smallest
heat & cool system. All new CAD designed case allows more capacity and air flow
than our original Compac systems. The ideal system for trucks and smaller hot
rods. Features true bi-level operation in cool and heat modes and a more powerful
dedicated dehumidified defroster mode.
19 " wide x 9" high x 7.3" deep

605004-VUA for Super 1800 Duct adapter for Super center vent. Turns air flow down for under dash louver use.	60500-VUA for Compac & Mini 1800 Duct adapter for Compac and Mini center vent. Turns air flow down for under dash louver use.
623013-VUA for Super Smooth diverter duct for Super directs heater air to left side of car when evaporator is mounted to extreme right side. Accepts 2” hose.	623000-VUA for Compac & Mini Smooth diverter duct for Compac and Mini directs heater air to left side of car when evaporator is mounted to extreme right side. Accepts 2” hose.
