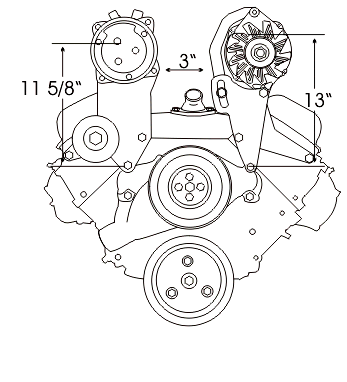

Big Block Chevy - Long Water Pump

Due to demand we now offer these brackets for long pump Big Block. Because of the water pump inlet location, the compressor belt runs in the groove normally used by the alternator and vice versa. A.C. bracket is complete with idler assembly.

Part Number: 116R - A.C.
Part Number: 216L - ALT.

Dimensions


This bracket is designed to be used with the factory alternator mount, eliminating the need to purchase both brackets. The compressor belt runs in the factory A.C. groove and the bracket is complete with idler assembly.

Part Number: 116L - A.C.

Dimensions



Low Profile

Engineered for low hood applications. Works great on any vehicle with a wide engine compartment - Trucks, 50-60's cars, etc. Bolts to the heads and water pump. WILL WORK with  factory power steering pump.

Part Number: 122R - A.C.
Part Number: 222L - ALT.

Dimensions


Designed for cars with low hood clearance - Camaros, Chevelles, etc. Works on any vehicle with wide engine compartment. Bolts to head and water pump. Works with factory alternator and power steering pump.

Part Number: 122L - A.C.

Dimensions

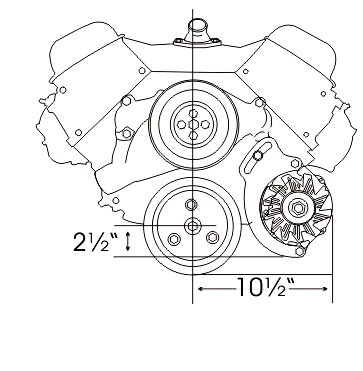

Designed to mount the alternator low on the driver's side. Bolts to the block and water pump. Will fit narrow frame applications.

Part Number: 217L - ALT.

Dimensions


MID-MOUNT ALT.

This bracket mounts the alternator just above the pump inlet. Bolts to head and water pump. Works well in low hood applications. FITS LONG PUMP ONLY.

Part Number: 225R - ALT.

Dimensions



We can also also supply and install all your radiator, electric cooling fan and shroud needs.
